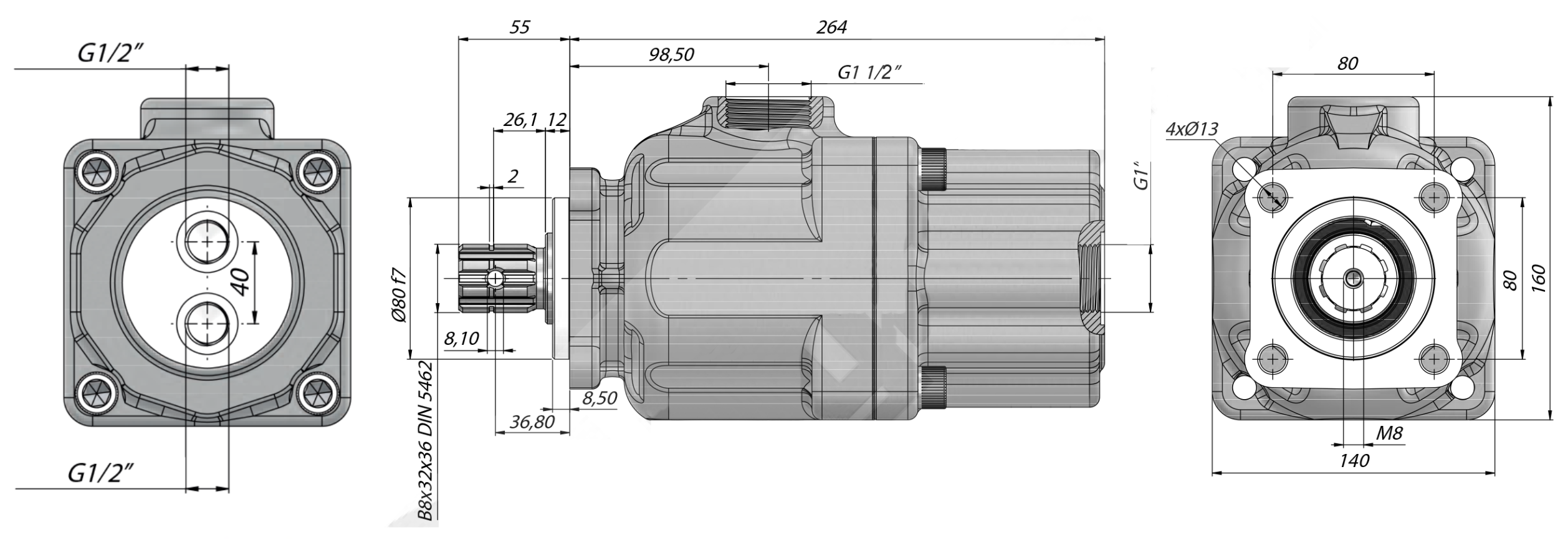

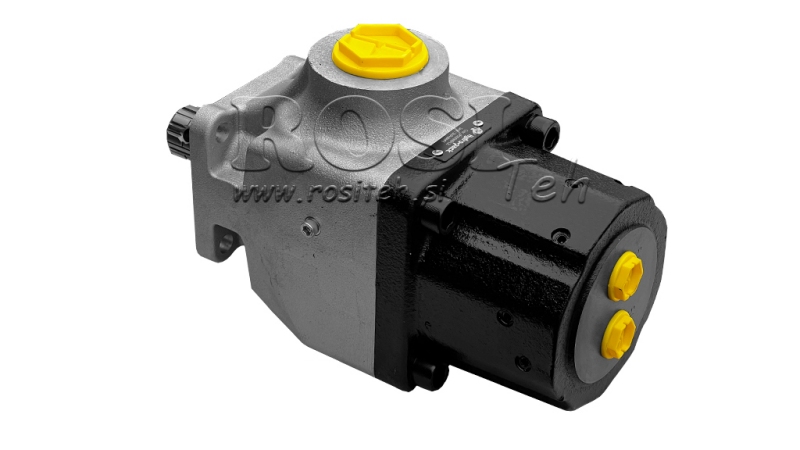

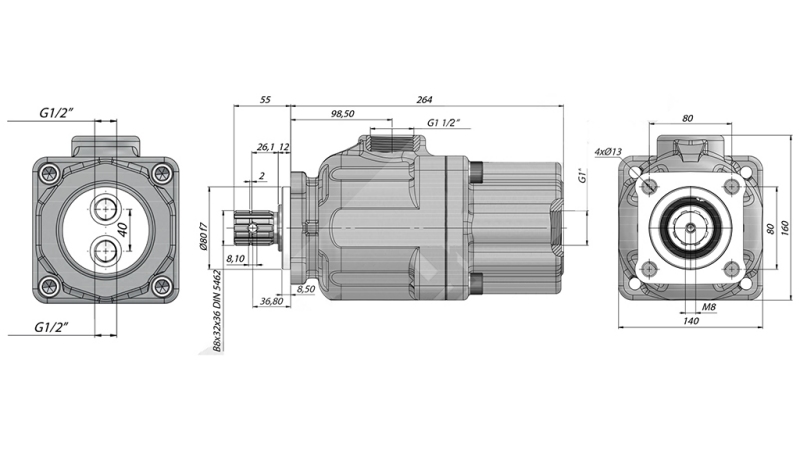

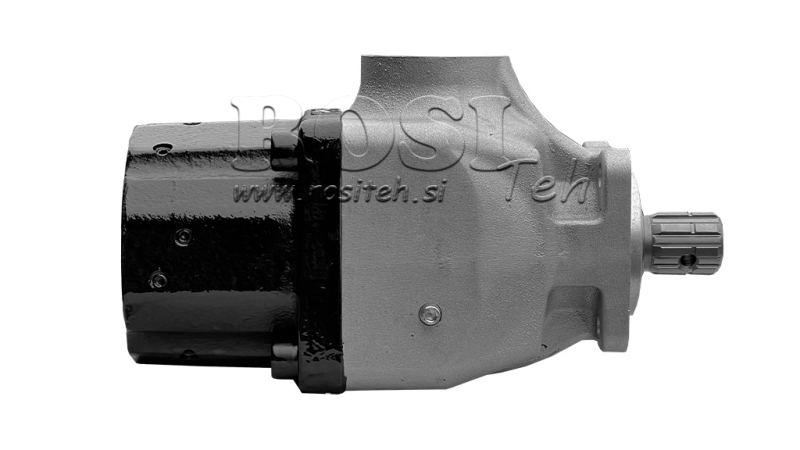

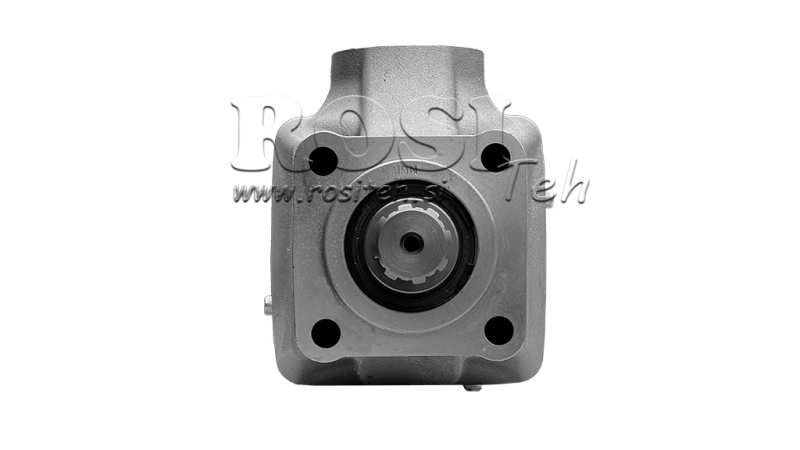

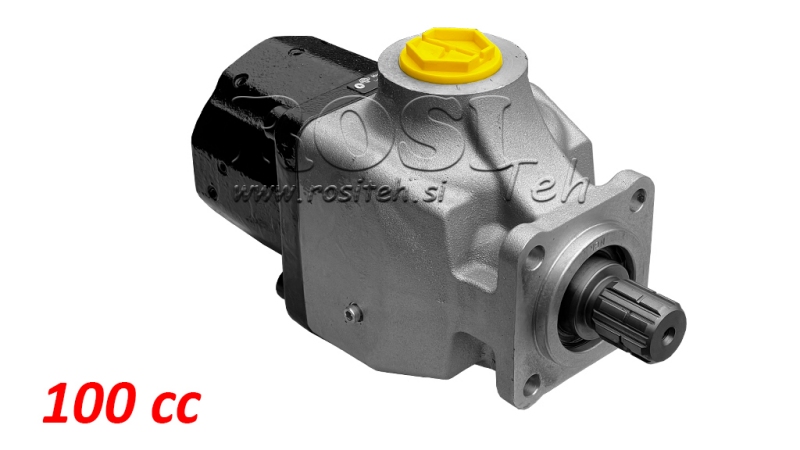

HYDRAULIC PISTON PUMP 100cc - 300 bar
Article code:
100196
OEM:
9990000027330
Tax rate
22 %
Price without VAT:
348,36 €
Price with VAT:
425,00 €
Ref:
12
Description:
Intended mounting on the truck or via the attachment to the tractor PTO shaft.
Suitable for use by power take-offs (trucks- tow trucks, municipal cars, hiab,)
The hydraulic piston pump is intended for professional use and higher pressures. It is extremely durable, high quality, and designed for continuous operation.
It is suitable for log cutters (also known as wood splitters), loaders, and similar machines. The use of a multiplier with a cast iron pump is not possible.
both side operation (left and right)
min. rpm:
300 rpm
suction thread:
1 1/4"
pressure thread:
1"
number of pistons:
10
max. pressure with breaks (20 sec.max.):
320 bar
max. current pressure (6 sec.max):
350 bar
direction bothsided (left or right):
yes
return or exchange:
not possible
flow:
99,80 cm3/rev
max. constant pressure:
300 bar
max. constant rpm:
1500 rpm
